Name: C115 Soil Triaxial Resonance Column Tester for Soil Lab
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: C115
Price: 55000 USD
Availability: InStock

Aperçu Produits Machine d'essai de sol

C115 Soil Triaxial Resonance Column Tester for Soil Lab

Détails sur le produit:

Lieu d'origine:	CHINE
Nom de marque:	zealchon
Certification:	CE ISO
Numéro de modèle:	C115

Conditions de paiement et expédition:

Quantité de commande min:	1 ensemble
Prix:	$55000
Détails d'emballage:	Boîte en bois
Délai de livraison:	7 jours
Conditions de paiement:	L / C, T / T, Western Union, Moneygram
Capacité d'approvisionnement:	100sets / mois

Contactez

Description de produit détaillée

Pouvoir:	Électronique	Une force forte.:	0 ~ 50nm
pression interstitielle:	0~1MPa	La pression de confinement:	De 0 à 1 MPa

Product Description

Specification

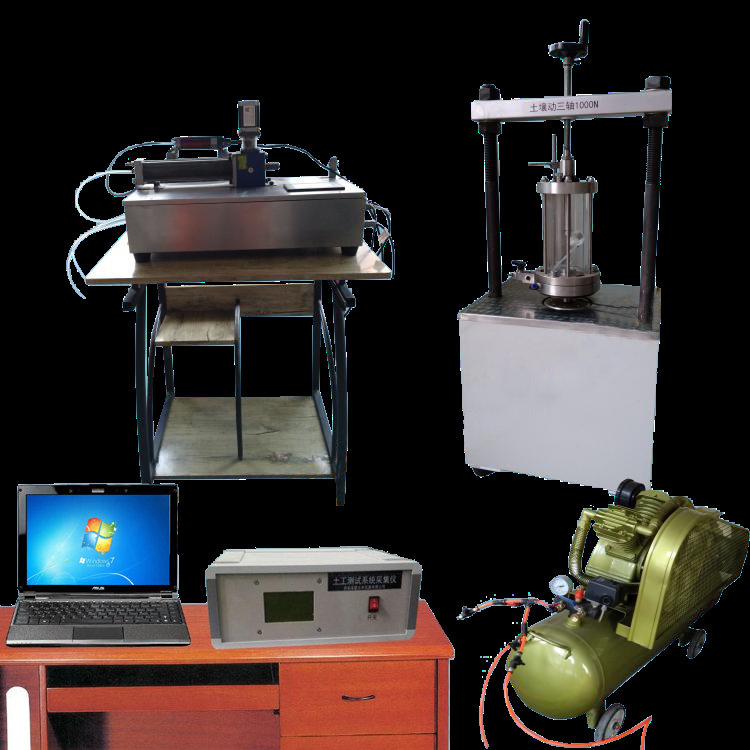

C115 Soil triaxial resonance column tester
The purpose of this test is to determine the dynamic shear modulus and damping ratio or dynamic elastic modulus and damping ratio of the sample under cyclic loading and small strain. This test adopts steady-state forced vibration method and free vibration method. The excitation mode is rotational vibration and longitudinal vibration. For this test, it is advisable to prepare more than 3 samples with the same properties and conduct the test under different ambient pressures. The ambient pressure should be determined according to the actual project. Generally use 100, 200, 300, 400KPa.
Suitable for saturated sand, silt and clay
Technical Parameters 1. Strong force 0～50Nm, precision 0.01Nm, any setting, constant dynamic 2. Pore pressure 0~1MPa 3. The confining pressure can be set arbitrarily from 0 to 1 MPa 4. Vibration frequency 0～10Hz 5. Amplitude 0.08～1.2mm 6. Computer real-time acquisition display, recording, drawing images, data export 7. Sample size: φ50×100mm.


item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	ZEALCHON
Model Number	C1156
Power	Electronic
Strong force	0~50Nm
Pore pressure	0~1MPa
The confining pressure	from 0 to 1 MPa
Vibration frequency	0~10Hz
Amplitude	0.08~1.2mm

Packing & Delivery

Company Profile

Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.

FAQ

1. who are we?

We are based in Shaanxi, China, start from 2014,sell to Eastern Asia(30.00%),South Asia(30.00%),Mid East(15.00%),Western Europe(15.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Bitumen Testing,Material Testing,Aggregate Testing Machine,Soil Testing,Laboratory machine

4. why should you buy from us not from other suppliers?

We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;

Accepted Payment Type: T/T,Credit Card,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,Japanese
