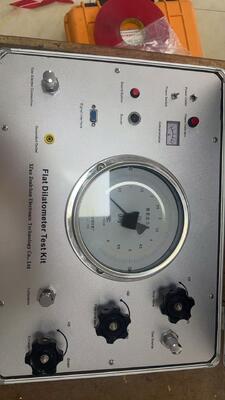

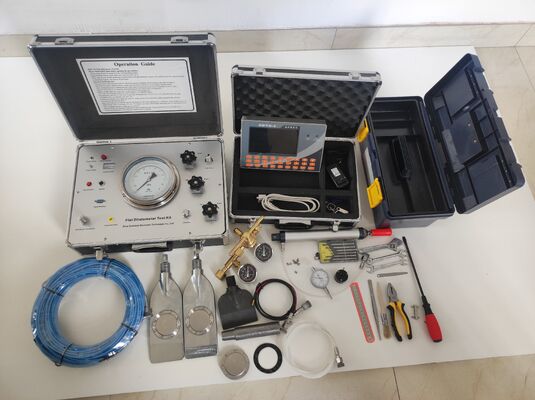

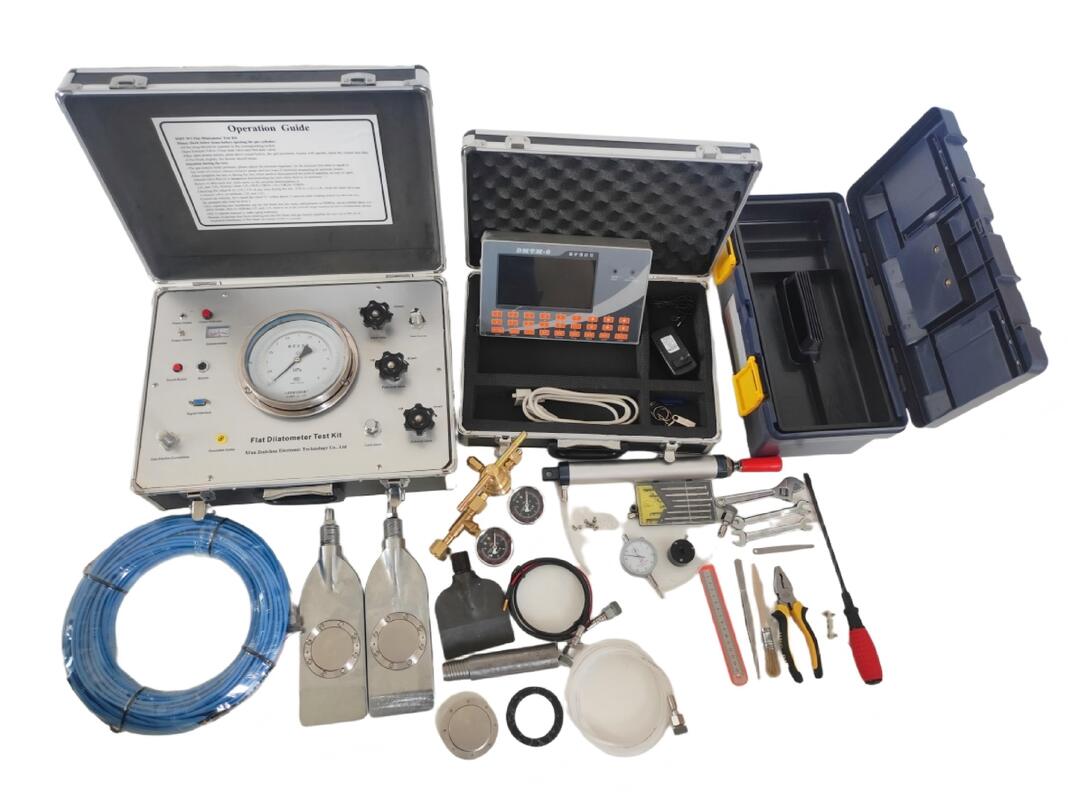

Name: Flat Dilatometer Test Apparatus Dilatometer Marchetti test Apparatus
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: WW3
Price: 8500 USD
Availability: InStock

Aperçu Produits Machine d'essai de sol

Flat Dilatometer Test Apparatus Dilatometer Marchetti test Apparatus

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	zealchon
Certification:	CE ISO
Numéro de modèle:	WW3

Conditions de paiement et expédition:

Quantité de commande min:	1SET
Prix:	$8500
Détails d'emballage:	CAISSE EN BOIS
Délai de livraison:	7 jours
Conditions de paiement:	LC, Western Union, T/T
Capacité d'approvisionnement:	100 ensembles/mois

Contactez

Description de produit détaillée

Probe d'essai:	longueur 230-240mm, largeur 95mm, épaisseur 15mm	Diamètre du film d'acier:	60mm
Profondeur d'essai:	0-50m	Erreur d'indication de l'ensemble du processus ::	±0.1%F.S
Nom du produit:	Test du dilatomètre Marchetti

Product Description

Specification

Test probe	length 230-240mm, width 95mm, thickness 15mm;
. Diameter of steel film	60mm
Test depth	0-50m (special stratum can be deepened); test spacing can be adjusted arbitrarily according to actual needs.
Indication error of the whole process:	±0.1%F.S
Standard	BS.EN.ASTM
Product name	Dilatometer Marchetti Test

Marchetti Dilatometer equipment

Product introduction:

This test has the functions and advantages of static cone penetration and side pressure test: the test is fast, accurate and economical. The test data has good reproducibility, small human influence factors, automatic data acquisition and storage, and automatic control of test signals. It is the first at home and abroad, and it has a data processing system (software) and two-way communication with it.

It can provide many important parameters of soil: lateral pressure coefficient Ko, pore water pressure U, undrained shear strength Cu, effective internal friction angle of sand Φ, bed reaction coefficient Kn, over-consolidation ratio OCR, compression modulus, Elastic modulus, shear modulus, division and naming of soil layers, compaction control, bulk density, judgment of sandy soil liquefaction... etc.

1. Penetration is generally pressed into the soil with a static cone penetrating machine, or into the soil with a dynamic penetrating hammer.

2. This test is suitable for all kinds of clay, silt and all kinds of sandy soil layers.

3. Using U disk storage and transmission, data transmission with the computer is more efficient and convenient. Product main parameters:

1. Test probe: length 230-240mm, width 95mm, thickness 15mm;

2. Diameter of steel film: 60mm;

3. Rated air pressure: ;

4. Test depth: 0-50m (special stratum can be deepened); test spacing can be adjusted arbitrarily according to actual needs.

5. Indication error of the whole process: ±0.1%F.S

6. The number of test results storage holes is up to 9999.

7. Low power consumption, using rechargeable lithium battery, standby time up to 24 hours.

8. The measurement and control instrument is displayed as a liquid crystal display

9. Make data processing system (software) and its two-way communication
