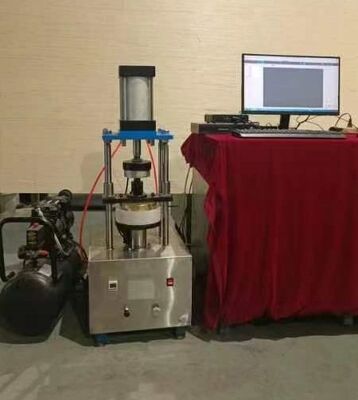

C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)

C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)

    • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
  • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)

    Détails sur le produit:

    Lieu d'origine: Chine
    Nom de marque: zealchon
    Certification: CE ISO
    Numéro de modèle: C038-A

    Conditions de paiement et expédition:

    Quantité de commande min: 1SET
    Prix: $12000
    Détails d'emballage: CAISSE EN BOIS
    Délai de livraison: 7 jours
    Conditions de paiement: LC, T/T, Western Union
    Capacité d'approvisionnement: 100 ensembles/mois
    Contactez
    Description de produit détaillée
    Taille de l'échantillon de sol: Diamètre extérieur 100 mm, diamètre intérieur 60 mm, hauteur 20 mm, zone d'échantillon : 50,27 c Chargement pneumatique servo-radial vertical: 0-10KN, réglable en fonction de la zone d'échantillon requise, constante.
    Capteur de cisaillement du couple: : 0-50N. m ± 0,1N. m Tension: 220V, 24V, 50Hz

    Product Description
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    Specification
    C077-B Soil Automatic Ring Shear Direct Shear Tester

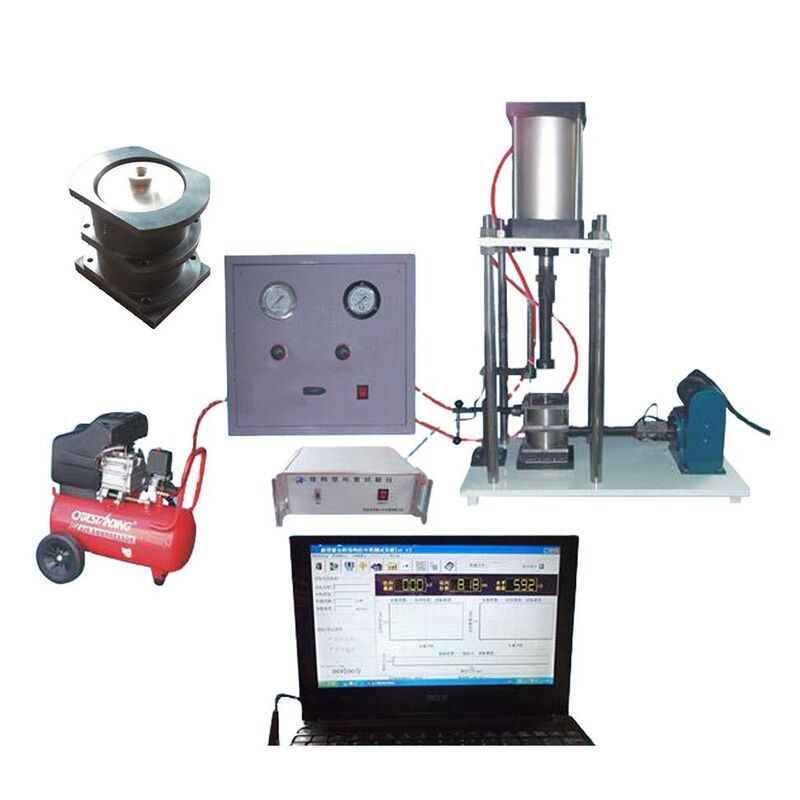

    The equal-strain control type direct shear instrument is used to measure the shear strength of soil. Usually, a specimen is used to apply shear force to shear under different vertical pressures. The shear stress at failure is obtained, and the shear strength coefficient, internal friction angle and cohesion are determined according to Coulomb's law. The instrument consists of a direct shear tester host, a pressure control system, a direct shear acquisition controller, an air pump, and host computer software. The direct shear controller displays the vertical pressure, shear force and displacement, and the speed can be set. The software can run under the Windows operating system, which can realize Automatic extraction, storage, printing, exporting and other functions of data acquisition instrument. Technical Parameters 1. Vertical loading: 0~10KN accuracy 0.005% 2. Pressurization method: cylinder pressurization. The pressure is loaded step by step according to the sample area, and the pressure is constant. 3. Shear force: 0~5KN (±10N) 4. Specimen size: ¢61.8×20mm 5. Limit displacement travel: 30mm Accuracy: 0.01mm 6. Shearing speed: 0~30mm/min can be set arbitrarily
    item
    value
    Warranty
    1 Year
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    ZEALCHON
    Model Number
    C077-B
    Power
    Electronic
    Vertical loading
    0~10KN accuracy 0.005%
    Shear force:
    0~5KN (±10N)
    Specimen size
    61.8*20mm
    Limit displacement travel
    30mm Accuracy: 0.01mm
    Shearing speed
    0~30mm/min
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    Related products
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    Company Profile
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    After-service
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    FAQ
    1. Who are we?
    We are based in Shaanxi, China, start from 2014, sell to Eastern Asia(30.00%), South Asia(30.00%), Mid East(15.00%), Western Europe(15.00%), Southern Europe(10.00%). There are total about 11-50 people in our office.

    2.What can you buy from us?
    Bitumen Testing, Material Testing, Aggregate Testing Machine, Soil Testing, Laboratory machine.

    3.How can we guarantee quality?
    Always a pre-production sample before mass production; Inspection and Calibration: technician do it strictly before shipment.

    4. Why should you buy from us not from other suppliers?
    We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.with a dedicated after-sales team. Support product customization.

    5. What services can we provide?
    Accepted Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery;
    Accepted Payment Currency: USD, EUR, JPY, CAD, AUD;
    Accepted Payment Type: T/T, Credit Card, PayPal, Western Union or other payment can be negotiated before shipment.
    Language Spoken:English,Chinese,Spanish,Japanese
    Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
