Aperçu ProduitsMachine d'essai de sol

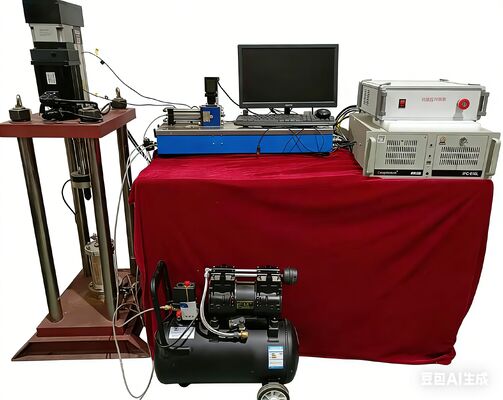

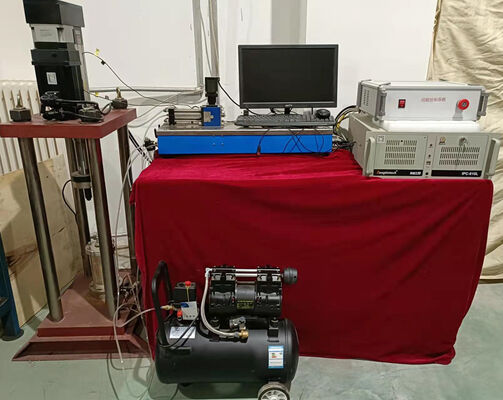

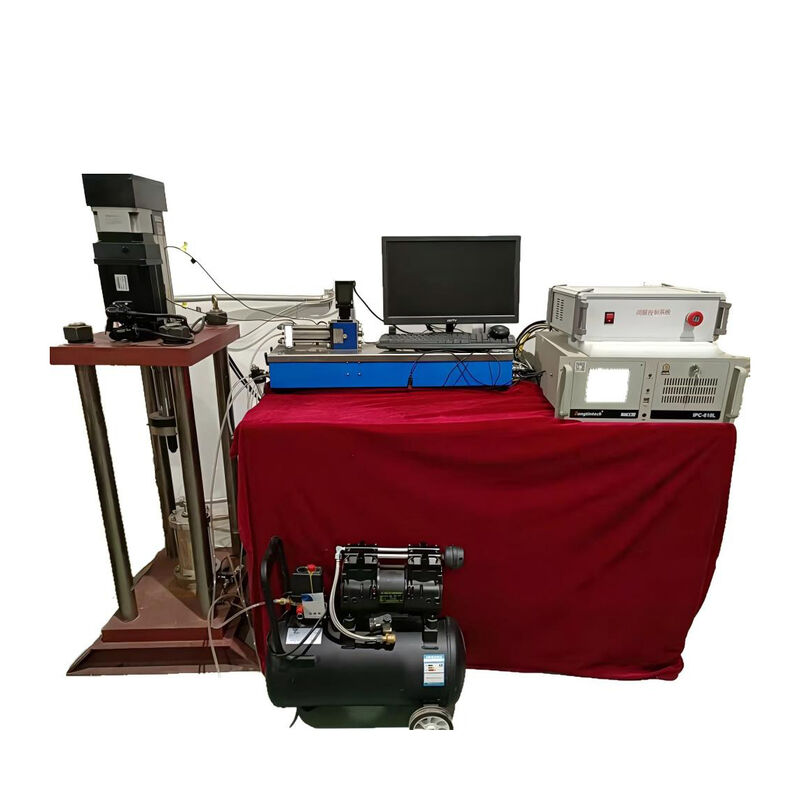

C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples

C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples

    • C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    • C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    • C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
  • C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples

    Détails sur le produit:

    Lieu d'origine: Chine
    Nom de marque: zealchon
    Certification: CE ISO
    Numéro de modèle: C003-a

    Conditions de paiement et expédition:

    Quantité de commande min: 1SET
    Prix: $12000
    Détails d'emballage: CAISSE EN BOIS
    Délai de livraison: 7 jours
    Conditions de paiement: LC, T/T, Western Union
    Capacité d'approvisionnement: 100 ensembles/mois
    Contactez
    Description de produit détaillée
    Course du piston du vérin électrique :: 100mm Cylindre électrique: sortie maximale 10KN (autres spécifications disponibles : 5KN ; 50KN ; 100KN)
    Capteur de pression: Précision 0-10KN 0,05N Déformation: Précision de 0 à 100 mm : 0,001 mm peut permettre une remise à zéro à tout moment

    Product Description
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    Specification

    Purpose and Scope of Application
    The purpose of this experiment is to determine the changes in stress, strain, and pore water pressure of saturated soil, soil samples, or mixed samples with cement, gravel, or soil under dynamic action, in order to determine their failure strength (including liquefaction) under dynamic action, dynamic modulus and damping ratio when the strain is greater than 10-4, and other dynamic characteristic indicators (large elastic modulus).
    Composition of instruments
    This instrument is an electromagnetic servo vibration three-axis. Its composition includes the host, electro-hydraulic servo control system, pressure control system, computer control, data acquisition, and software processing system.
    (1) Host: including pressure chamber and servo electric cylinder. (2) Electromagnetic servo control system: used for axial vibration, applying axial dynamic stress, and controlling servo electric cylinders. (3) Pressure control system: Apply confining pressure, back pressure, including pipelines, gas sources, water sources, etc. (4) Computer control, data acquisition, and software processing system: The computer controls the entire process of the experiment, collects and records data in real-time, and automatically generates test record tables and curve reports upon completion of the experiment.
    item
    value
    Warranty
    1 year
    Certification
    ISO
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    ZEALCHON
    Model Number
    C003
    Power
    Electronic
    Electric cylinder piston stroke
    100mm
    Electric cylinder: maximum output
    10KN (other specifications available: 5KN; 50KN; 100KN
    Pressure sensor
    0-10KN accuracy 0.05N
    Deformation
    0-100mm Accuracy: 0.001mm can achieve zero reset at any point
    Power supply
    220V 50Hz
    Certificate
    ISO
    Product name
    Soil dynamic trixial tester
    Application
    Soil
    Testing results
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    Related products
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    Company Profile
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    After-service
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    FAQ
    1. Who are we?
    We are based in Shaanxi, China, start from 2014, sell to Eastern Asia(30.00%), South Asia(30.00%), Mid East(15.00%), Western Europe(15.00%), Southern Europe(10.00%). There are total about 11-50 people in our office.

    2.What can you buy from us?
    Bitumen Testing, Material Testing, Aggregate Testing Machine, Soil Testing, Laboratory machine.

    3.How can we guarantee quality?
    Always a pre-production sample before mass production; Inspection and Calibration: technician do it strictly before shipment.

    4. Why should you buy from us not from other suppliers?
    We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.with a dedicated after-sales team. Support product customization.

    5. What services can we provide?
    Accepted Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery;
    Accepted Payment Currency: USD, EUR, JPY, CAD, AUD;
    Accepted Payment Type: T/T, Credit Card, PayPal, Western Union or other payment can be negotiated before shipment.
    Language Spoken:English,Chinese,Spanish,Japanese
    Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
