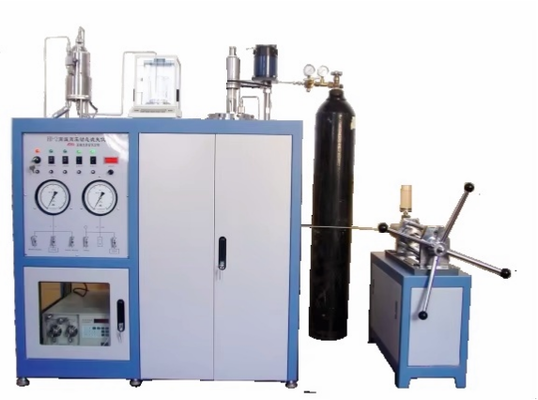

High-pressure Mercury Porosimeter

High-pressure Mercury Porosimeter

    • High-pressure Mercury Porosimeter
    • High-pressure Mercury Porosimeter
    • High-pressure Mercury Porosimeter
  • High-pressure Mercury Porosimeter

    Détails sur le produit:

    Lieu d'origine: Chine
    Nom de marque: zealchon
    Certification: CE ISO
    Numéro de modèle: M

    Conditions de paiement et expédition:

    Quantité de commande min: 1SET
    Prix: $60000
    Détails d'emballage: CAISSE EN BOIS
    Délai de livraison: 7 jours
    Conditions de paiement: LC, T/T, Western Union
    Capacité d'approvisionnement: 100 ensembles/mois
    Contactez
    Description de produit détaillée
    Plage de diamètres de pores mesurables: 0,03 ~ 750 µm Pression de service: 0,002 ~ 50MPa
    Degré de vide: ≤ 0,005 mm Hg Exactitude de capteur de pression: ≤ 0,25%
    Résolution du volume de mercure: ≤ 30 µ

    Product Description

    Overview



    The pore structure of rocks is extremely complex. In order to quantitatively study the pore structure of rocks, people use different methods to measure and draw the capillary pressure curve of rocks, and study the pore structure characteristic parameters of rock samples based on the capillary pressure curve.



    This high-pressure pore structure analyzer (commonly known as mercury intrusion porosimeter) uses the mercury intrusion method to measure the capillary pressure curve. Its main function is to inject mercury (non wet phase) into the pores of rock samples at different set pressures, measure and record the corresponding relationship between pressure and the volume of mercury injected into the rock samples, and then draw the capillary pressure curve to determine the pore structure characteristic parameters of the rock samples.High-pressure Mercury Porosimeter

    • Main performance indicators of the instrument



    1. Measurable pore diameter range: 0.03~750 μ m. 2. Working pressure: 0.002~50MPa

    3. Vacuum degree: ≤ 0.005mm Hg 4. Pressure sensor accuracy: ≤ 0.25%

    5. Mercury volume resolution: ≤ 30 μ l 6. Vacuum maintenance time: ≥ 5 minutes

    7. Number of measurable pressure points: ≥ 100 8 Pressure balance time: ≥ 60s

    9. Minimum exit pressure: ≤ 0.3Psi (0.002MPa)

    10. Pressure sensor range: one for each of 0.1, 1, 10, and 50MPa

    11. Sample parameters: Two rock samples with a diameter of 25 × 25mm can be made simultaneously, and special sizes can be customized.









    Specification
    item
    value
    Type
    Testing machine
    customized support
    OEM
    place of origin
    China
    Accuracy
    0.03
    Voltage
    Other
    Protection Class
    ip55
    brand name
    Zealchon
    Filtration area
    45.6cm2
    Working pressure
    0.69MPa
    Drilling fluid cup extreme pressure
    1MPa
    Drilling fluid injection
    360ml
    Outline Dimension
    310×180×490mm
    Package Size
    620*300*490mm
    Net weight / Gross weight
    7.08kg/8.94kg
    Standard
    API
    Product name
    LPLT filter press
    Related products
    High-pressure Mercury Porosimeter
    Company Profile
    High-pressure Mercury Porosimeter
    High-pressure Mercury Porosimeter
    High-pressure Mercury Porosimeter
    High-pressure Mercury Porosimeter
    High-pressure Mercury Porosimeter
    High-pressure Mercury Porosimeter
    High-pressure Mercury Porosimeter
    High-pressure Mercury Porosimeter
    After-service
    High-pressure Mercury Porosimeter
    FAQ
    1. Who are we?
    We are based in Shaanxi, China, start from 2014, sell to Eastern Asia(30.00%), South Asia(30.00%), Mid East(15.00%), Western Europe(15.00%), Southern Europe(10.00%). There are total about 11-50 people in our office.

    2.What can you buy from us?
    Bitumen Testing, Material Testing, Aggregate Testing Machine, Soil Testing, Laboratory machine.

    3.How can we guarantee quality?
    Always a pre-production sample before mass production; Inspection and Calibration: technician do it strictly before shipment.

    4. Why should you buy from us not from other suppliers?
    We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.with a dedicated after-sales team. Support product customization.

    5. What services can we provide?
    Accepted Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery;
    Accepted Payment Currency: USD, EUR, JPY, CAD, AUD;
    Accepted Payment Type: T/T, Credit Card, PayPal, Western Union or other payment can be negotiated before shipment.
    Language Spoken:English,Chinese,Spanish,Japanese
    Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
