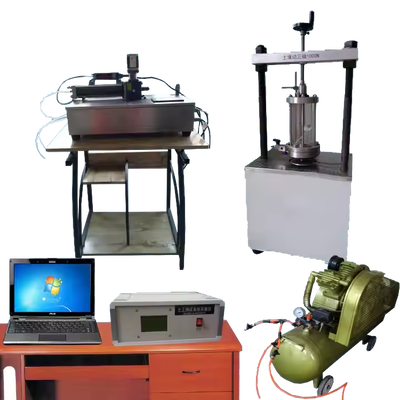

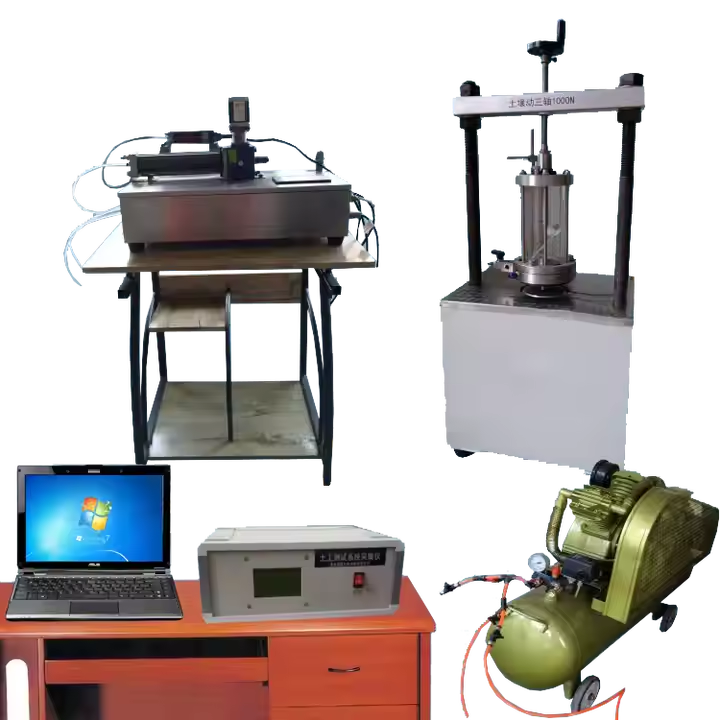

C115 Fully-Automated Resonant Column & Torsional Shear System

C115 Fully-Automated Resonant Column & Torsional Shear System

    • C115 Fully-Automated Resonant Column & Torsional Shear System
    • C115 Fully-Automated Resonant Column & Torsional Shear System
  • C115 Fully-Automated Resonant Column & Torsional Shear System

    Détails sur le produit:

    Lieu d'origine: Chine
    Nom de marque: zealchon
    Certification: CE ISO
    Numéro de modèle: C115

    Conditions de paiement et expédition:

    Quantité de commande min: 1SET
    Prix: $90000
    Détails d'emballage: boîte en bois
    Délai de livraison: 7 jours
    Conditions de paiement: LC, T/T, Western Union
    Capacité d'approvisionnement: 100 ensembles/mois
    Contactez
    Description de produit détaillée
    Force puissante: 0 à 50 Nm La pression des pores.: 0-1MPA
    La pression de confinement: de 0 à 1MPa Fréquence des vibrations: 0 à 10 Hz
    Échantillon: φ50 × 100 mm

    Product Description
    C115 Fully-Automated Resonant Column & Torsional Shear System
    Specification
    The Soil Triaxial Resonance Column Tester is an advanced geotechnical instrument used to Measure the Dynamic Mechanical Properties of Soil in a small strain range (usually 10 ⁻⁶~10 ⁻ ³). It combines the advantages of traditional triaxial testing and resonance column technology, and can simultaneously study dynamic parameters such as shear modulus (G) and damping ratio (λ), as well as static deformation characteristics of soil. Here is its detailed description:

    Major function

    Dynamic characteristic testing: Determine the shear modulus (G) and damping ratio (λ) of soil under small strain using resonance frequency method.

    Static characteristic testing: supports conventional triaxial tests (such as UU, CU, CD) to obtain parameters such as shear
    strength (c, φ) and deformation modulus.

    Wide coverage of strain range: seamless transition from small strain (elastic zone) to large strain (nonlinear failure zone).
    -Multi field coupling (optional): can integrate temperature control and seepage systems to simulate complex environments (such as frozen soil and saturated soil).

    loading system

    Axial loading: Using servo motors or hydraulic systems to achieve static loading (stress/strain control) and dynamic excitation(sine wave, random wave)

    Confining system: Apply constant/variable confining pressure (0-2 MPa, adjustable) through air pressure or hydraulic pressure to simulate the stress state of soil at different depths.
    item
    value
    Warranty
    1 year
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    zealchon
    Model Number
    C115
    Power
    Electronic
    voltage
    220 V.50HZ
    Powerful force
    0-50Nm
    Pore pressure
    0-1MPa
    Sample Size
    50×100mm
    Product name
    Rock Liquid Permeameter
    Warranty
    1 Year
    Standard
    BS.EN.ASTM
    Power supply
    220V 50Hz
